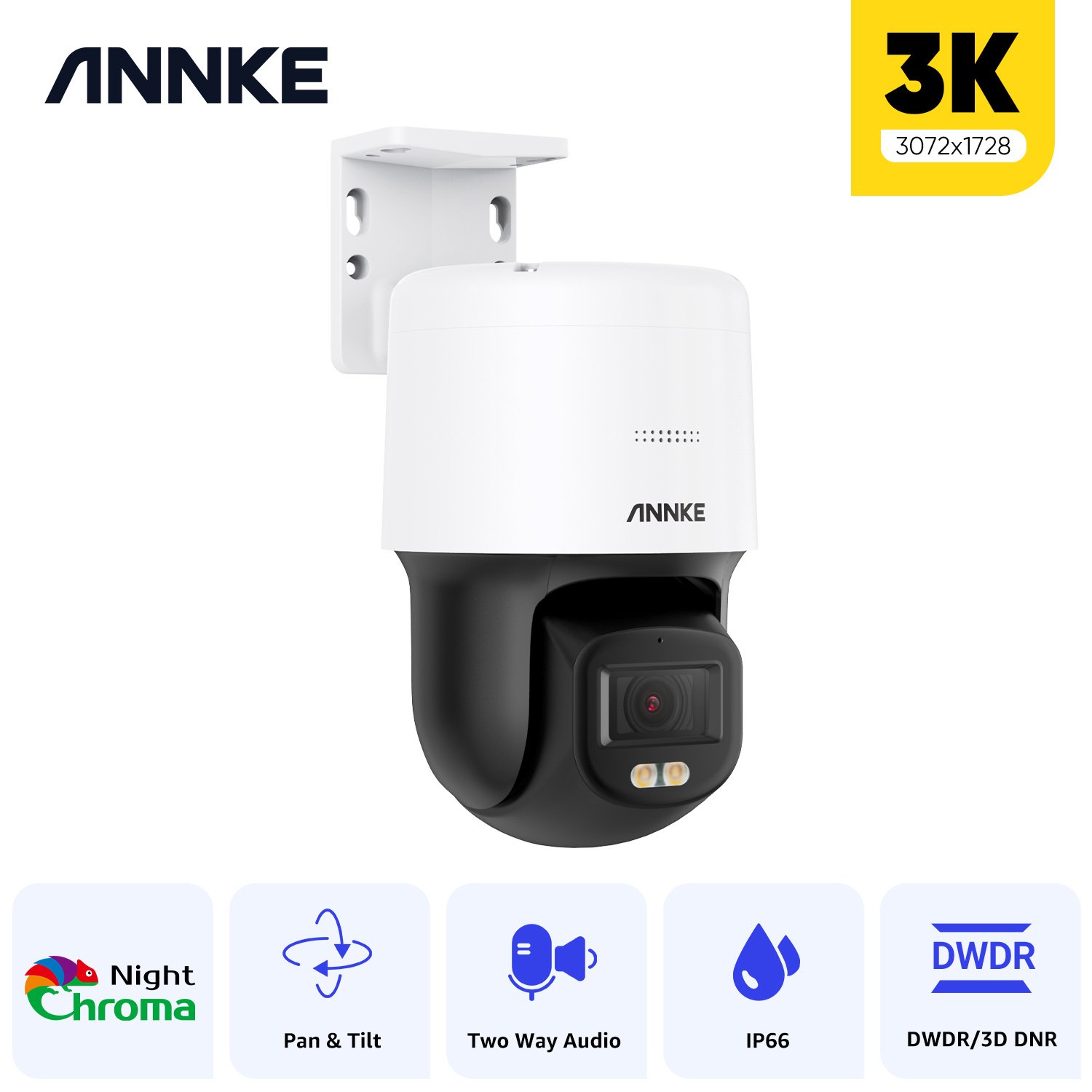

ANNKE 3K 5MP PoE PT Speed Security Camera Color Night Vision Motion Detection Built-in Microphone Security Protection Cameras

IP Camera

Camera

Image Sensor

1/1.8"Progressive Scan CMOS

Max resolution

3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display

Main Stream

50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Substream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

Lens

2.8 mm@F1.0

FOV

Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°

Supplement Light

Smart white Light, up to 30 m

Min. Illumination

24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

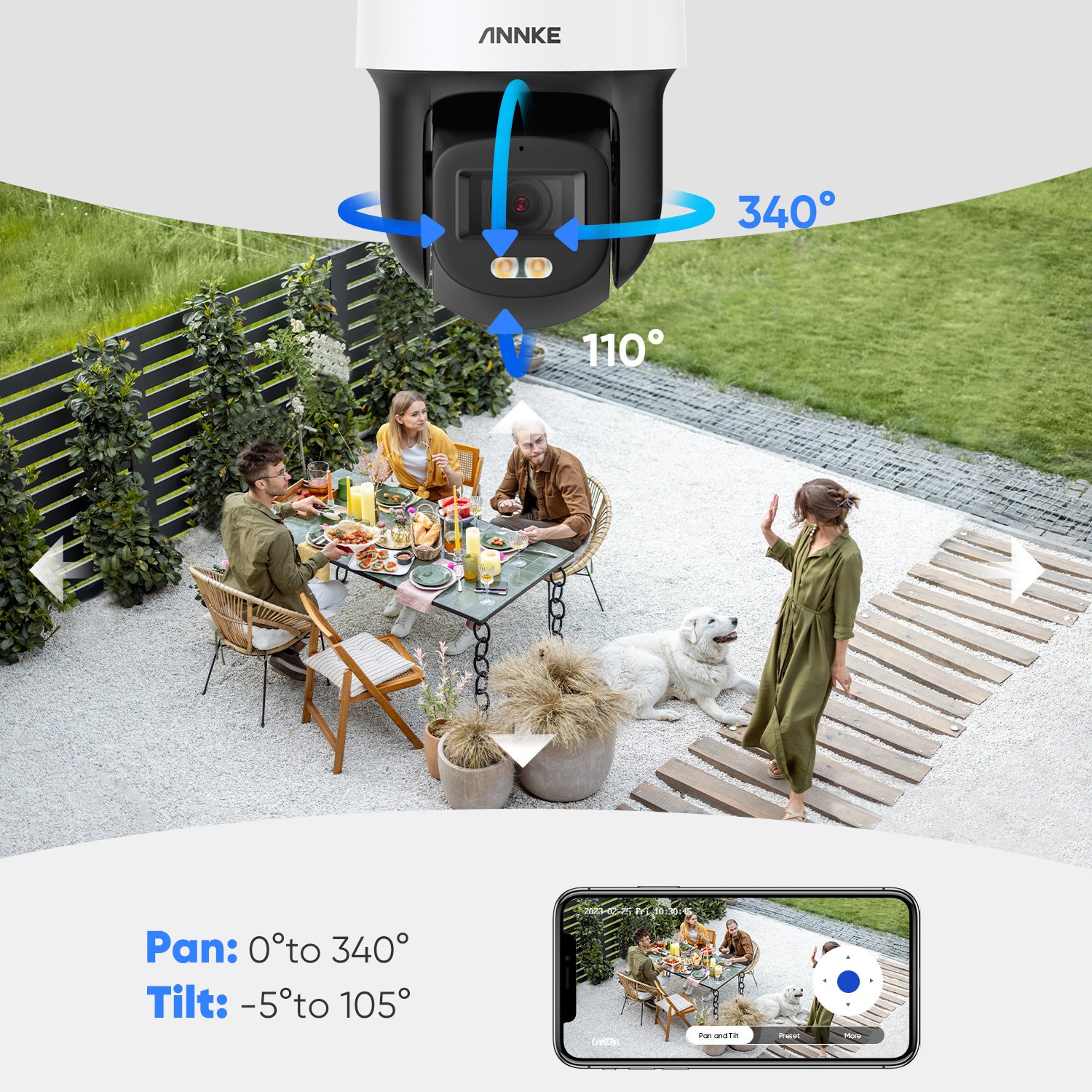

Movement Range

Pan:0° to 340°, Tilt: -5° to 105°

Pan Speed

Configurable from 4° to 21°/s

Tilt Speed

Configurable from 4° to 19°/s

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Image Enhancement

3D DNR,BLC, HLC, WDDR

Protocols

IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP

API

Open Network Video Interface Version 18.12

Audio

Build in microphone & speaker, support 2-way audio

Basic Event

Motion detection, video tampering alarm, exception

General Function

Mirror, password protection, watermark

General

Material

Plastic

Color

White & black

Operating Power

12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Storage

Support MicroSD Card (up to 256 GB)

Operating Temperature

-22° to 122° F (-30° to 50° C)

Indoor/Outdoor

Indoor/Outdoor

Protection Level

IP66

Dimension

162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")

Weight

780 g (1.7 lb.)
