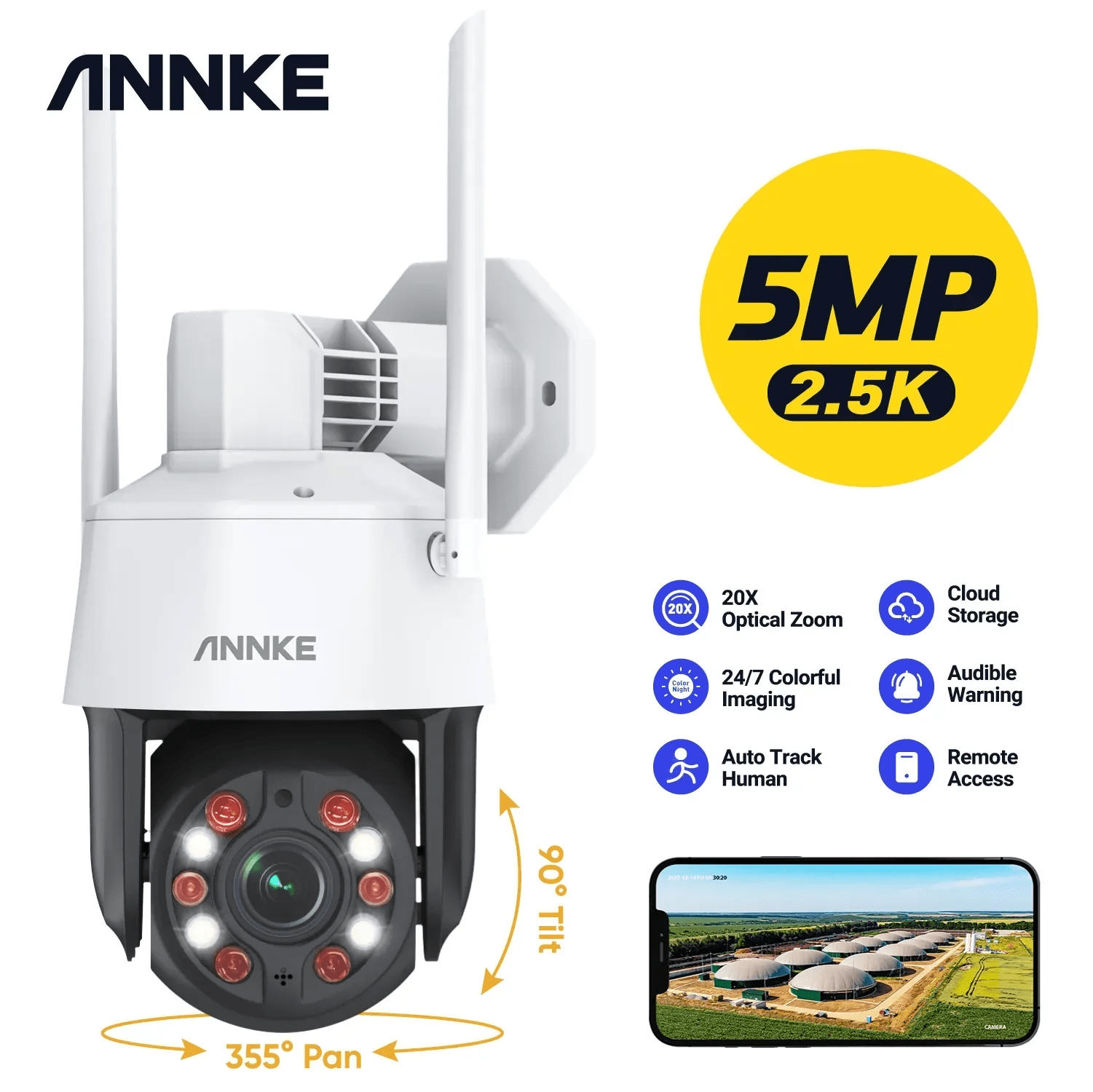

Annke 5MP PTZ Wifi IP Camera H.265 Outdoor AI Human Auto Tracking 20X Zoom IP Camera Two Way Audio Security Protection
Key Features
1/2.8" Sony CMOS
5MP, 2592*1944
20X optical zoom
Two-way voice intercom, built-in microphone and speaker
Pan and Tilt (level: 350° & vertical: 90 °)
Human detection and Smart Tracking
IR range distance 100 meters
Full-color distance 50 meters
Up to 128G TF card
Alexa
Cloud storage
Customized Motion Areas
Packaging Contents
1 X Camera
1 X Power Adapter
1 X Mounting Screw Bag
1 X User's Manual
Warranty | 1 Year | |
Camera | Video Resolution | 5MP(2592×1944) |
Image Sensor | 1/2.8" Sony CMOS | |
Video Compression | H.265/H.264 | |
Video Bitrate | 32Kbps~8Mbps | |
Audio Compression | G711 | |
Lens | 5.3mm ~ 106mm | |
Angle of View | 45°~3° | |
Number of Infrared LEDs | 6 | |
Number of White light LEDs | 4 | |
Night Vision/Full-color Distance | Up to 100m/50m | |
PTZ | Horizontal 350°, Vertical 90°, 20X optical | |
IR-Cut Filter | Yes | |
ONVIF Protocol | ONVIF 2.4 | |
Ethernet | WIFI(IEEE 802.11b/g/n), RJ45 | |
General | Housing | Plastic + Metal |
Operating Power | DC12V | |
Storage | Micro SD Card(up to 128GB) | |
Operating Temperature | -4 °F – 140 °F /-20 °C – 60 °C | |
Indoor/Outdoor | 0utdoor | |
Mount Option | Wall mount/Ceiling mount | |
Dimension (L X W X H) | ||
Weight | ||
Key features

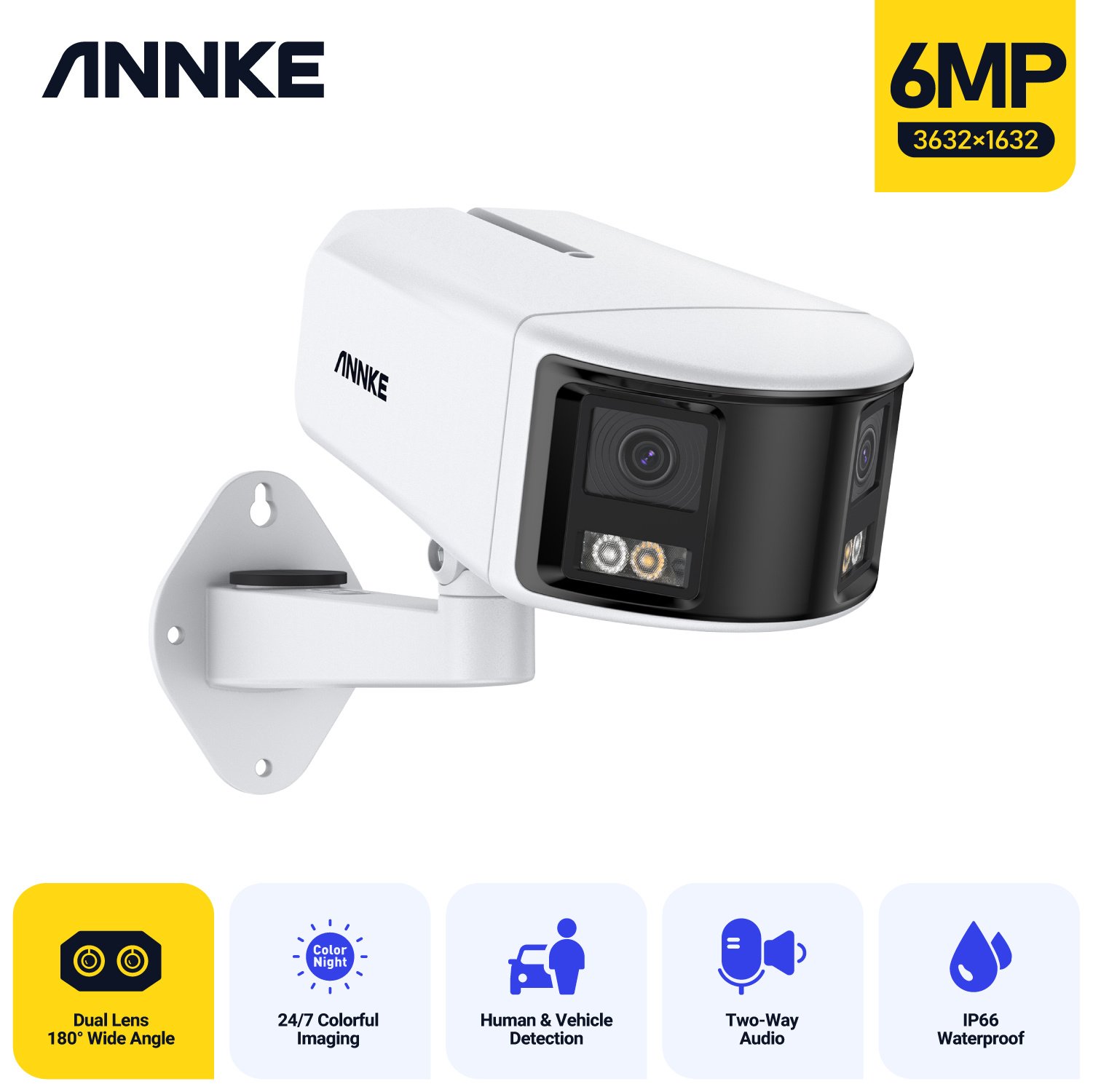

IP Camera | ||
Camera | Image sensor | 2×1/2.5" Progressive Scan CMOS |
Main Stream | 50 Hz: 20 fps (3632 × 1632) | |
Sub Stream | 50 Hz: 20 fps(1200 × 536, 960 × 432) | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Yes, support environment noise filtering | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 95 dB | |
Lens | Dual lens: 2.8 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
Angle of View | Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° | |
Supplement Light | White light + IR | |
Supplement Light Range | White light up to 20 m, IR light up to 30m | |
Image Parameters Switch | Yes | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket,Onvif | |
Basic Event | Motion detection (support human and vehicle detection), video tampering | |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection) | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Compatible NVR | ANNKE latest version NVR: N48PBB-V2, N44PAM, N48PAW-V2, N46PCK-V2, N931BB, N88PCH, N96PBD, please confirm if your NVR is the latest version before you purchase this camera | |
General | Housing | Metal&Plastic, White color |
Operating Power | PoE (802.3af), 12 VDC ± 25%,Ø 5.5 mm coaxial power plug | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR | |
DC12V output | DC12 V, 100 mA output | |
Audio input/output | 1 input (line in),1 output (line out) | |
Alarm nput/output | 1 input, 1 output (max. 24 VDC, 1 A) | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP66 | |
Dimension (L x W x H) | 103.6 × 76 × 193.4 mm | |
Weight | Approx. 600 g (1.32 lb.) | |
Here the NVR could get together, just click the picture to get it, thanks
