Dahua IP Camera Security 6MP IPC-HDW4631C-A Camara Surveillance Night Vision IR PoE Built-in Mic
IP Camera Security HD 6MP IPC-HDW4631C-A Web Cam Camara Surveillance Night Vision IR 30M H.265 PoE Built-in Mic Cameras
>Default IP :192.168.1.108
>User: 'admin' , Passwrod : 'admin'.(Camera Initialized when you got/ please modify the password )
> Language:English, Russian, Spanish
1. The model of this camera is 100% DH Chinese original. it is 100% original from DH, so please don't worry any quality problem.
2. Please DO NOT update this IP Camera!
3. As different country has different shipping rules. We will choose the express method for you according to our experience.

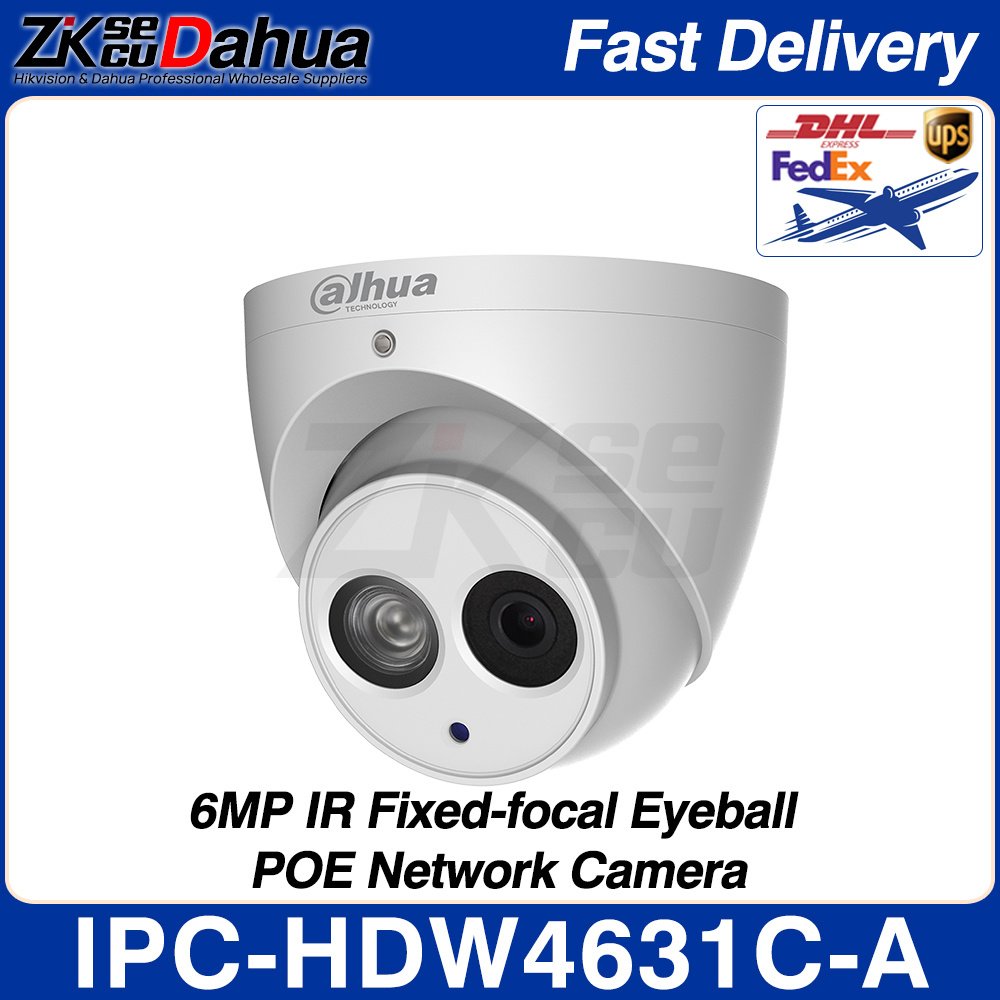

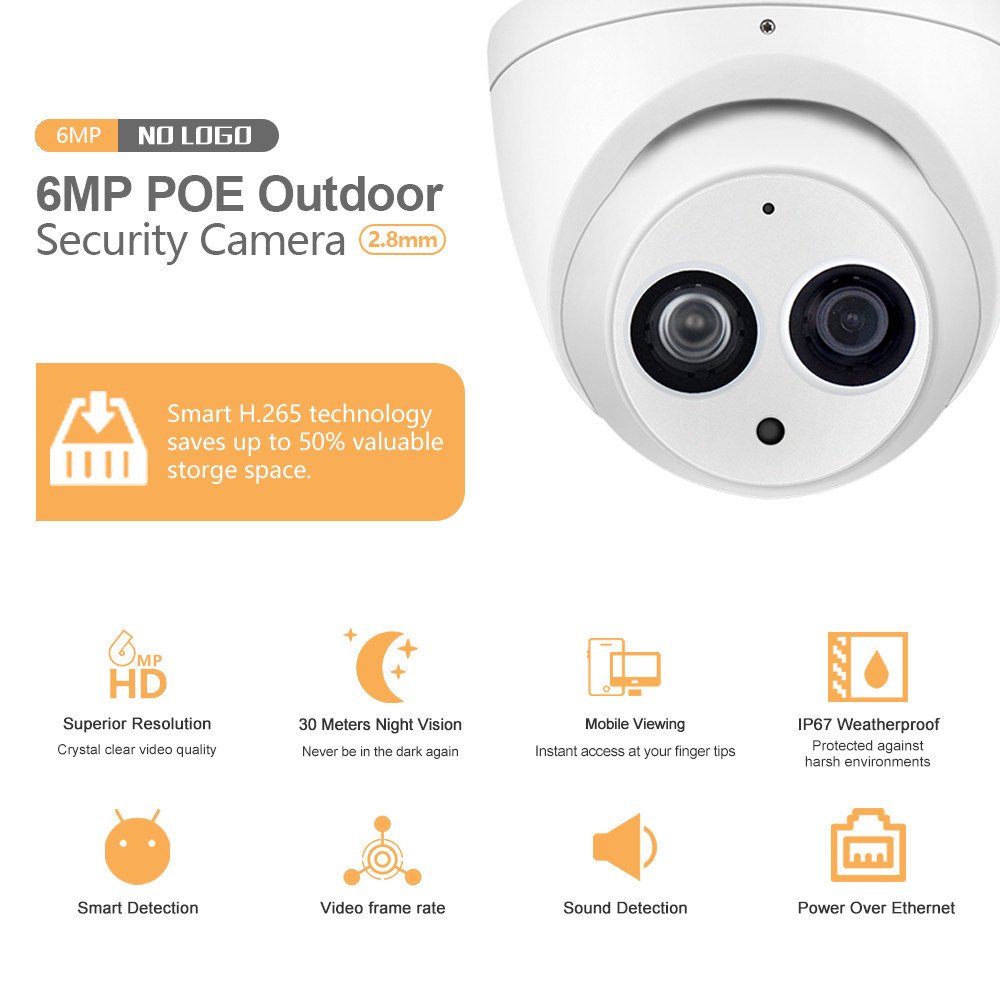

DH CCTV IP Camera IPC-HDW4631C-A
> 1/2.9' 6Megapixel progressive scan STARVIS? CMOS
> H.265&H.264&MJPEG triple-stream encoding
>20fps@6MP(3072x2048),25/30fps@4MP(2688x1520)
> Smart detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm optional)
> Built-in Mic
> Max. IR LEDs Length 30m
> PoE
> Language:English, Russian, Spanish
1. 6MP IR Eyeball Network Camera (with or without logo)*1
2. screw bag *1
3. Waterproof accessories *1
Model-IPC-HDW4631C-A
1.Camera
Image Sensor : 1/2.9' 6Megapixel progressive scan CMOS
Effective Pixels : 3072(H) x 2048(V)
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
Minimum Illumination : 0.002Lux( Color), 0.0002( black/white), 0Lux(IR on)
S/N Ratio : More than 56dB
IR Distance : Distance up to 50m
IR On/Off Control : Auto/ Manual
2.Lens
Lens Type : Fixed
Mount Type : Board-in
Focal Length : 2.8mm (3.6mm 6mm optional)
Max. Aperture : F2.5/F2.2/F2.0
Angle of View : 2.8mm : H : 99 V : 69.4 3.6mm : H : 70 V : 48 6mm : H : 47.34 V : 33.75
Focus Control : Fixed
Close Focus Distance : 0.8m (1.2m,3.9m)
3.Intelligence
IVS : Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions : Face Detection
4.Video
Compression : H.265/H.264/MJPEG
Streaming Capability : 3 Streams
Resolution : 6M(30722048)/5M(3072x1728)/ 5M(25921944)/ 4M(26881520)/ 3M(2048x1536)/ 3M(23041296)/ 1080P(19201080)/1.3M(1280x960)/ 720P(1280720)/ D1(704576/704480)/CIF(352288/352240)
Frame Rate : "Main Stream : 6M(1~20fps)/4M(1~25fps);
Sub Stream : D1(1~25fps);
Third Stream : 1080P(1~24fps)"
Bit Rate : 73Kbps～10240Kbps
Day/Night : Auto(ICR) / Color / B/W
BLC Mode : BLC / HLC / WDR(120dB)
White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control : Auto/Manual
Noise Reduction : 3D DNR
Motion Detetion : Off / On (4 Zone, Rectangle)
Region of Interest : Off / On (4 Zone)
Mirror : Off / On
Privacy Masking : Off / On (4 Area, Rectangle)
5.Audio
Compression : G.711a/ G.711Mu/ AAC/ G.726
6.Network
Ethernet : RJ-45 (10/100Base-T)
Protocol : HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability : ONVIF, PSIA, CGI;
Max. User Access : 20 Users
Edge Storage : NAS Local PC for instant recording
Web Viewer : IE, Chrome, Firefox, Safari
Management Software : Smart PSS, DSS, Easy4ip
Smart Phone : IOS, Android
7.Interface
Video Interface : N/A
Audio Interface : Built-in Mic
RS485 : N/A
Alarm : N/A
8.Electrical
Power Supply : DC12V, PoE (802.3af)(Class 0)
Power Consumption : <4.8W
9.Environmental
Operating Conditions : -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Strorage Conditions : -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection : IP67
10.Construction
Casing : Metal
Dimensions : Φ106mm93.7mm (4.17'3.69')
Net Weight : 0.47Kg (1.04lb)
Gross Weight : 0.65Kg (1.43lb)
Question: Can I upgrade the firmware of the camera ?
Answer: NO . it do not supportupgrade the firmware .
Question: Why I can't upgrade the firmware ?
Answer: This camera is Chinese version and we changed the language to English , it will be Chinese it you upgrade the firmware .
Question: How about the quality of this camera ?
Answer: This camera is Chinese original version for Chinese users , it has the same quality with international version but it is cheaper with same function .
Question: How about the warranty of this camera ?
Answer: 7-days returning of goods , Warranty 1-years .
Question: How default IP and login pass for connection to Camera
Answer: 192.168.1.108. User name is 'admin' and Password 'admin'. You can set it once you're logged in.
Question: How to factory reset?
Answer:it have reset buttom / Supply power to camera then Press 15s
